LEVELING CASTER OVERVIEW US Patent 6,637,071

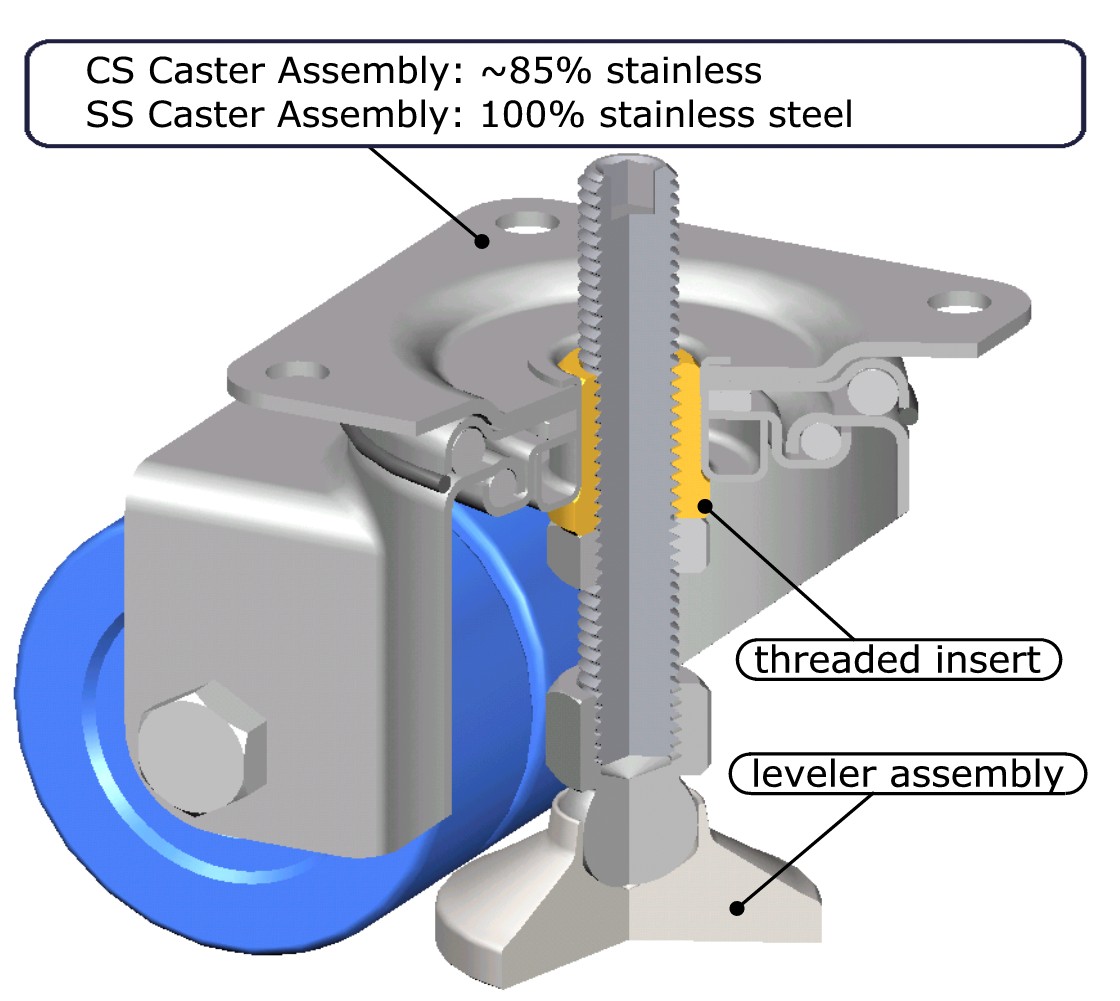

Our stainless leveling casters combine a dual wheel caster and a leveling component (purchased separately) to create a practical and cost-effective integrated solution.  Despite an apparent interference, the leveler foot responds quietly and dynamically to the swiveling wheels in the retracted position as though it wasn't there.

Product Advantages
  • cost-effective integrated solution
  • improved stability
  • lower cost of installation
  • prevents damage to levelers
  • precise leveling component with one inch (25mm) of adjustment
  • leveler options include extended length studs and hex sockets
Products PhotosClick to Enlarge

Shown left to right:

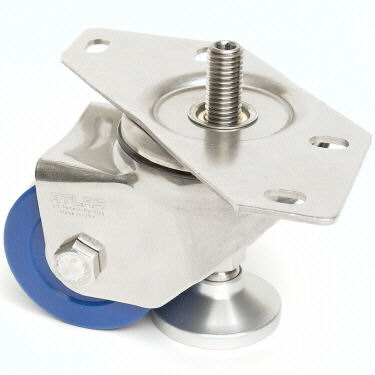

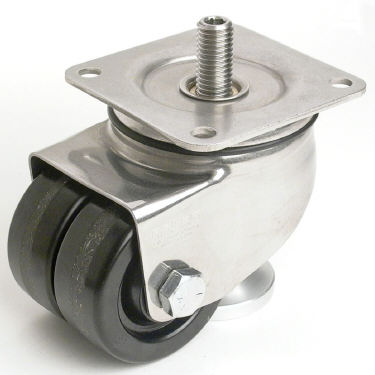

  • Square Baseplate
  • Corner Baseplate

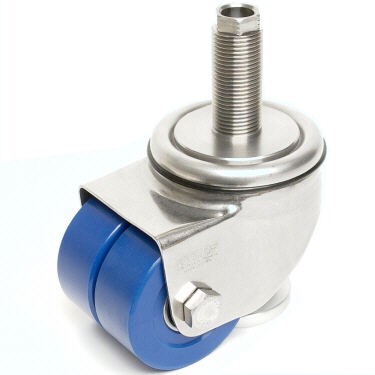

  • Stem Version

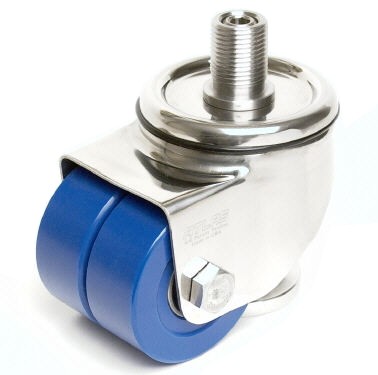

  • Ht. Adjustable Stem

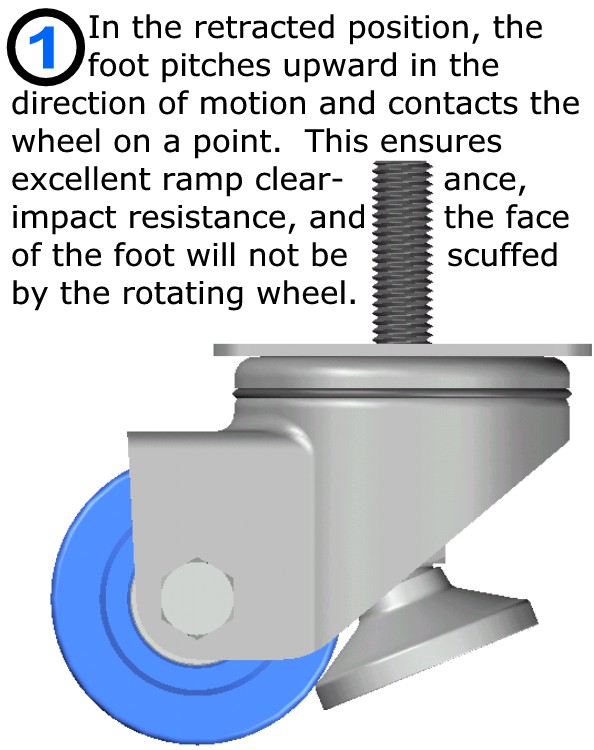

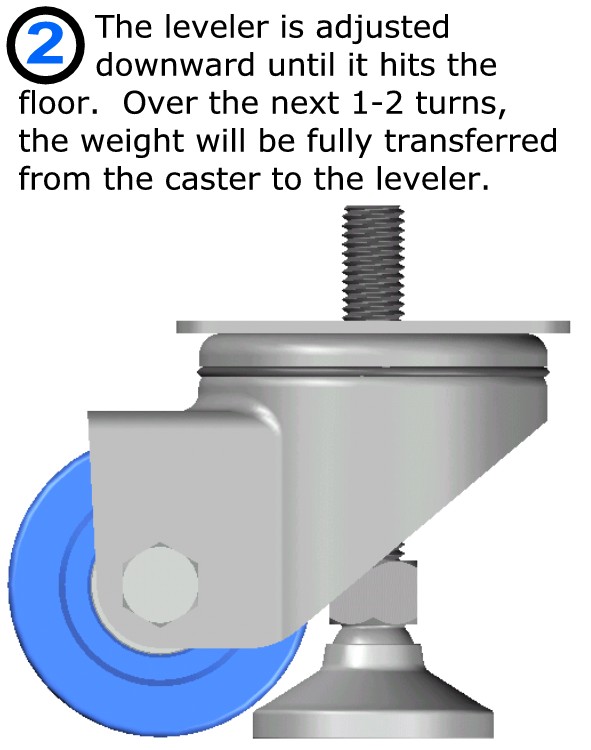

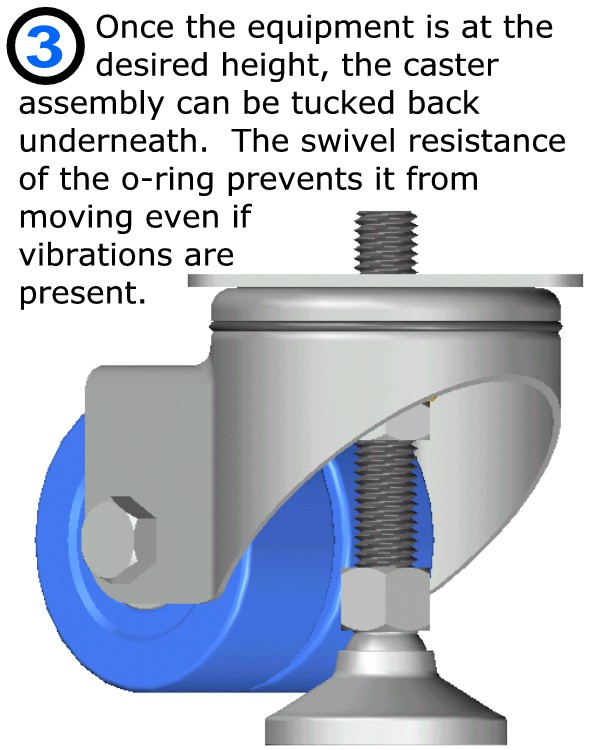

Use and Operation
