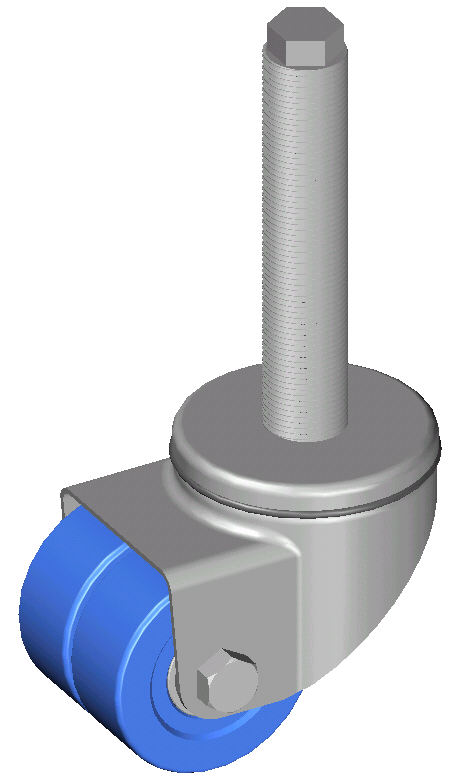

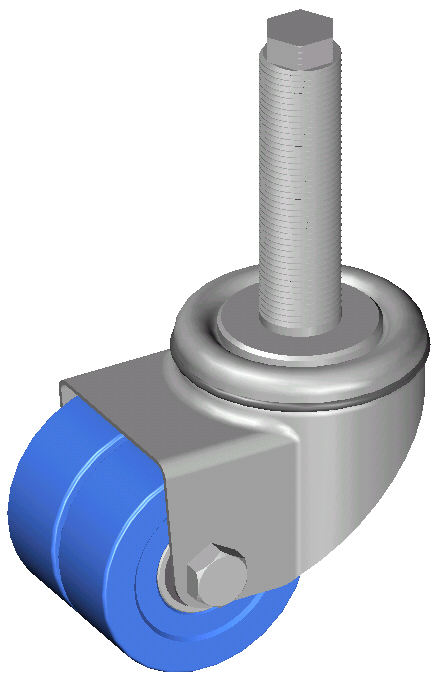

ADJUSTABLE HEIGHT SWIVEL CASTERS

For applications that require more caster height adjustability, our line of adjustable height swivel casters offer between 2-4.5 inches of adjustability. These casters are available standard with stainless stems for the 500 Series and zinc plated steel stems for the 1000 Series. Unlike other stem casters, these casters are designed to be separated from the base of equipment up to their full rated load.

SpecificationsDimensions in Inches/Pounds.   Call for CAD Files & Spec Sheets
WHL DIA TREAD WIDTH OVERALL HEIGHT SWIVEL RADIUS STEM LEN (A) STEM THRD (B) INSERT LENGTH WHEEL MATERIAL WHEEL BEARING LOAD CAP.
2.5 2.0 3.30 3.15 3.5 & 5.0 7/8 - 14 7/8 PHENOLIC PLAIN 450
POLYURETHANE DELRIN
PRECISION
3.0 2.5 4.00 3.85 4.0 & 6.0 1 1/8 - 12 1.00 PHENOLIC PLAIN 750 & 1000
POLYURETHANE PRECISION
NOTES & WARNINGS
  • WARNING: Casters should ONLY be extended for docking a machine or for static applications.
  • WARNING: Do not ship, crate, or transport the machine with the casters extended.
  • options are available for applications that require a smaller swivel radius (up to 1/2 in. reduction)
  • hole should have class 2 threads and be chamfered .06 X 45 to clearance the base of the stem.
  • lubricate mounting hole with a suitable grease.   Christo-Lube MCG-132 from Lubrication Technology (www.lubricationtechnology.com) is recommended for cleanroom applications.
