LEVELERS

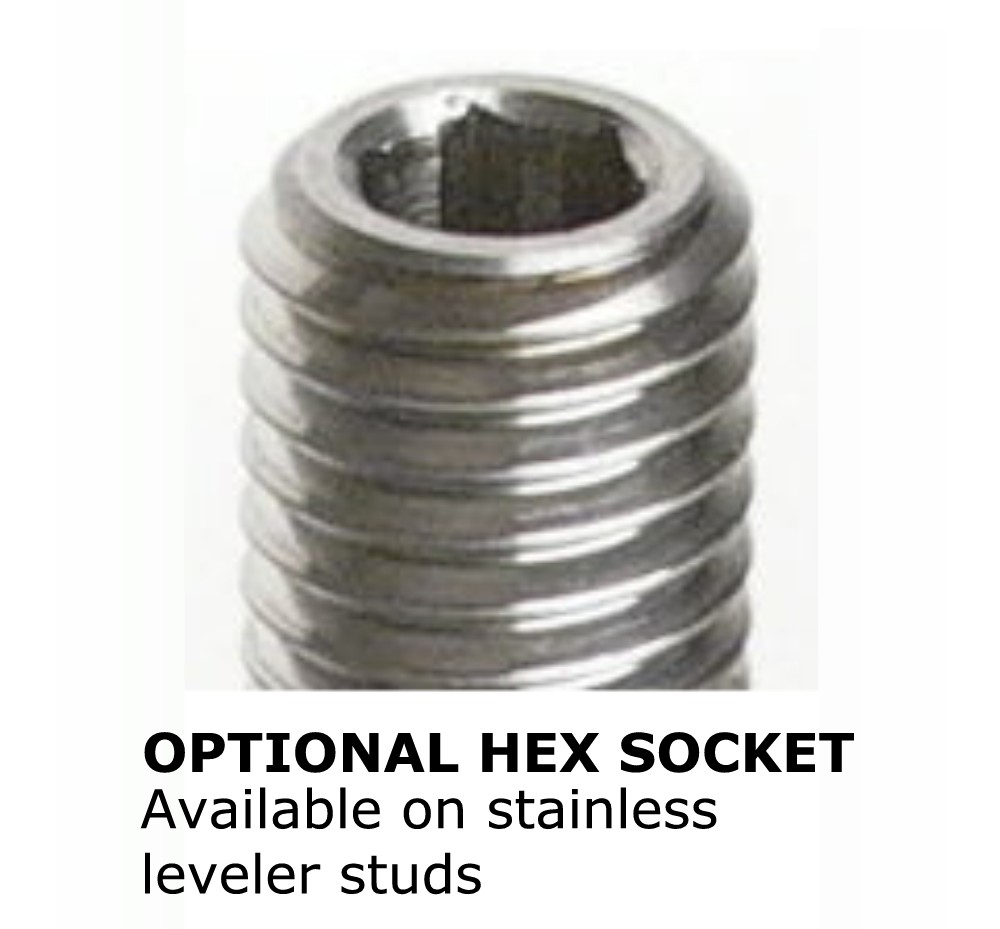

Our high quality levelers are ideally suited for applications in the semiconductor, biotech, medical, and pharmaceutical industries.  They are built to order with your choice of pad and stud material.  A hardened stainless stud with an integral hex socket can be ordered for overhead adjustment under load conditions.  Many custom options also available.

Quality Features
  • attractive CNC machined surface finish
  • specially contoured ball socket substantially reduces friction and galling for ease of adjustment
  • anodized & stainless models have a CNC machined stainless ball and hex
  • rolled vs. crimped ball socket
  • fully threaded stud for full retraction
  • anodized aluminum foot has excellent corrosion resistance and can be a cost-effective alternative to stainless
  • levelers with hex socket allow fast and easy overhead adjustment
  • class 2 threads

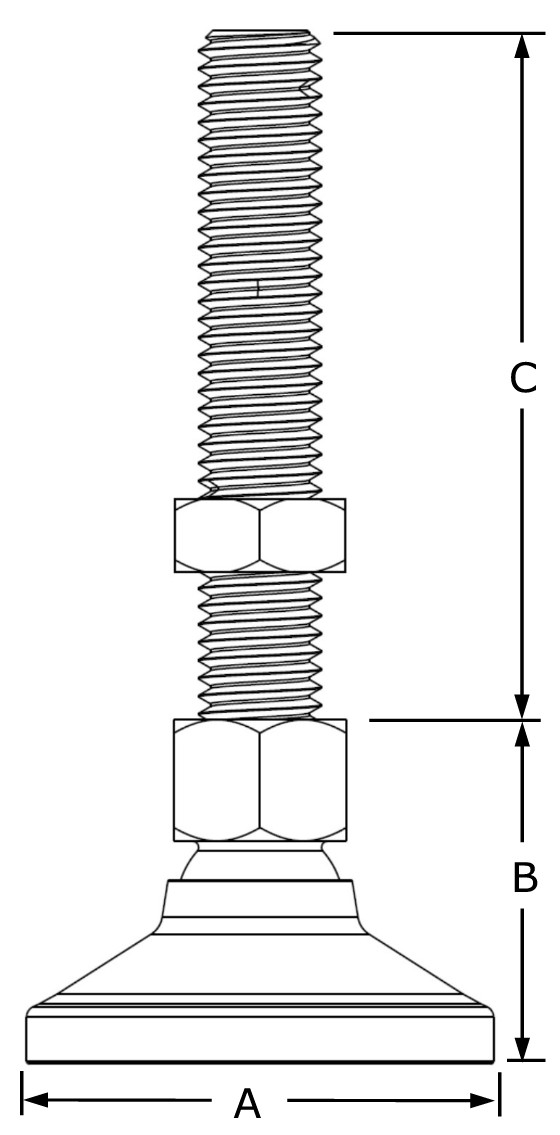

SpecificationsDimensions in Inches/Pounds.   CAD Files & Spec Sheets

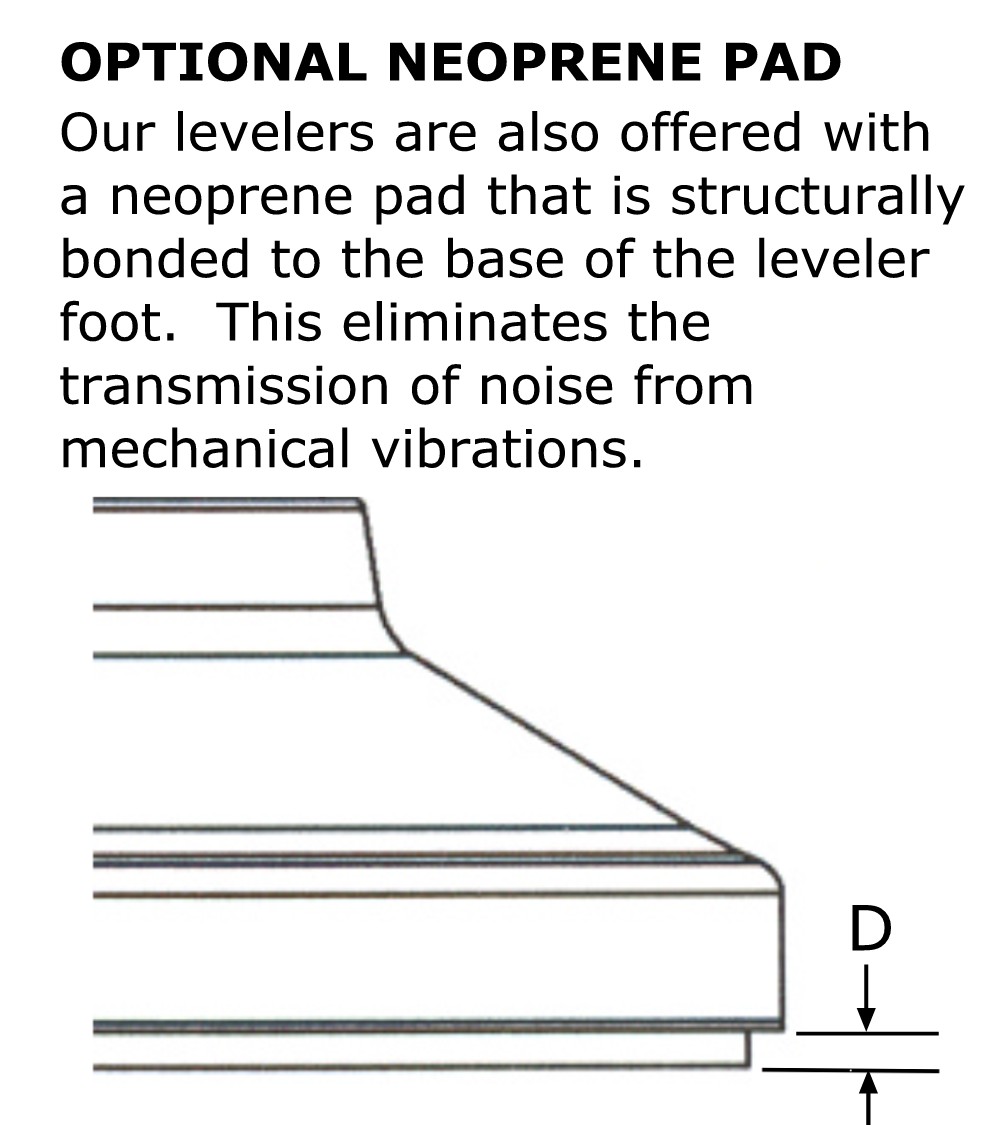

STUD THREAD PAD DIA (A) RETRACT LEN. (B) STUD LEN. (C) FOOT MATERIAL STUD MATERIAL LOAD CAP. D
1/2-13 1.88 1.30 3.00¹ ALUMINUM ZINC PLATED STEEL 500 1/16
STAINLESS
STAINLESS w/ HEX
ANODIZED STAINLESS
STAINLESS w/ HEX
STAINLESS STAINLESS
STAINLESS w/ HEX
5/8-11 2.38 1.75 3.50² ALUMINUM ZINC PLATED STEEL 1000 1/16
STAINLESS
STAINLESS w/ HEX
ANODIZED STAINLESS
STAINLESS w/ HEX
STAINLESS STAINLESS
STAINLESS w/ HEX
NOTES
  • non-standard stainless hex stud stock lengths:
    • 1/2-13: 4.50, 6.00 in.
    • 5/8-11: 5.00, 6.50, 8.00 in.
  • other lengths and modifications available.
  • plain aluminum feet should not be used in aqueous or acidic environments.
